Implementing tiered tables v1.7

Tiered tables provide a unified storage architecture by combining Postgres Distributed (PGD) AutoPartition with Postgres Analytics Accelerator (PGAA) to create an automated data lifecycle. When a standard heap table is converted to a tiered structure, the system manages the transition of data from transactional to analytical storage without manual intervention, providing zero-touch data lifecycle management that optimizes storage costs.

In this architecture, queries span both hot and cold data tiers seamlessly, providing a single point of access for the entire dataset regardless of its physical location. Recent data remains in local heap partitions for high-performance transactional processing, while older cold partitions are offloaded to object storage transparently once they cross a defined age threshold.

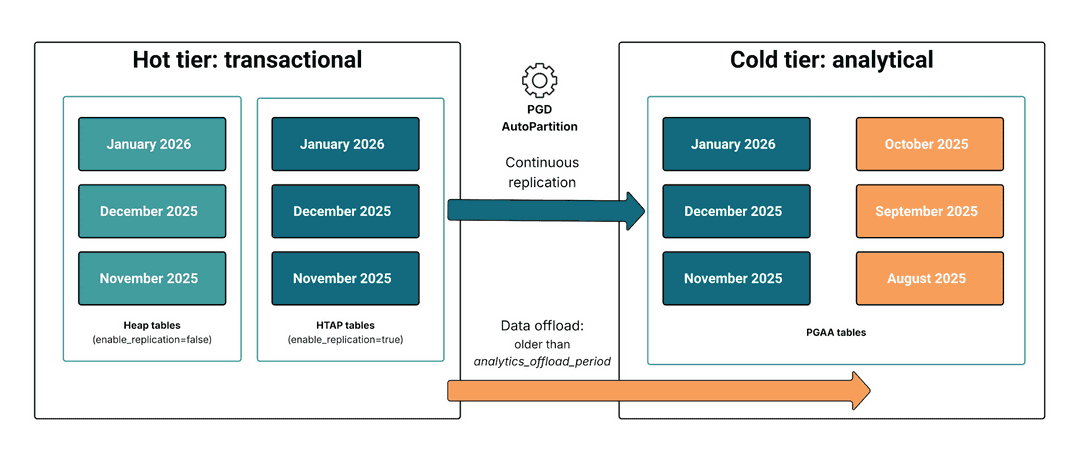

By calling pgaa.convert_to_tiered_table(), a standard heap table is transformed into a hybrid partitioned structure:

• Hot tier: Recent data stays in local heap partitions, or Hybrid Analytics and Transactional Processing (HTAP) tables if replication is enabled. For HTAP, PGAA uses Iceberg Merge-on-Read (MoR) to capture updates and deletes as lightweight "delete files." This keeps the cloud tier synchronized without the overhead of rewriting large data blocks.

• Cold tier: Once partitions cross a the age threshold defined by analytics_offload_period, they are automatically converted to PGAA tables in the data lake. Local storage is reclaimed, but the data remains transparently queryable through the same table interface.

Process overview

To convert a heap table into a tiered table, follow these steps:

1. Meet the prerequisites and point to object storage by choosing either a storage location or a catalog service.
2. Use the pgaa.convert_to_tiered_table() function to convert a heap table to a tiered table.
3. Verify and monitor the automated offloading.
4. Modify or disable settings as your storage needs evolve.

Converting a heap table to a tiered table

The pgaa.convert_to_tiered_table() function initiates the automated offload process. If enable_replication is true, it also converts active partitions into HTAP tables for continuous replication. For example:

CALL pgaa.convert_to_tiered_table(
    relation := 'my-transactional-table'::regclass,
    range_partition_column := 'date',
    partition_increment := '1 month',
    analytics_offload_period := '1 year',
    initial_lower_bound := '2010-01-01',
    retention_period := '5 years',
    enable_replication := true,
    minimum_advance_partitions := 2,
    maximum_advance_partitions := 5,
    drop_after_retention_period := true,
    purge_analytics_target := true
);

Where:

• relation: The name of the heap table to convert to tiered table.
• range_partition_column: The column used for range partitioning. It must be DATE or TIMESTAMP, and it must also be included in the primary key.
• partition_increment: The time interval defining the size of each partition.
• analytics_offload_period: The threshold age at which a partition is moved from local storage to the cold tier in the data lake.
• initial_lower_bound: The starting value for the first partition's lower bound.
• retention_period: The period after which data is purged from the cold tier.
• enable_replication: If true, enables real-time replication to object storage for active partitions (as an HTAP table). If false, the hot partitions remain as heap tables.
• minimum_advance_partitions: Minimum number of future partitions to maintain.
• maximum_advance_partitions: Maximum number of future partitions to maintain.
• drop_after_retention_period: Whether to drop the partition locally after the retention period expires.
• purge_analytics_target: If true, any pre-existing tables in the object store directory or catalog entry are deleted. If set to false and pre-existing tables are detected, the command will fail with an error (Supported in PGD 6.3 and later).

When used in conjunction with a catalog service, tiered tables create a unified view in the catalog that performs a UNION of all partitions. You can enable the bdr.prefer_analytics_engine parameter to route queries on the entire tiered table to the PGAA engine (Seafowl or Spark):

SET bdr.prefer_analytics_engine = TRUE;

If enable_replication is true, this setting enables DirectScan for the entire partitioned table. Because the catalog maintains a view of both the offloaded cold data and the replicated hot data, the analytics engine can execute the query across the complete lifecycle of the data.

Monitoring tiered tables

The pgaa.list_tiered_tables() function provides a high-level overview of all tables currently undergoing automated lifecycle management. Its output is useful for identifying which heap tables have been successfully converted to tiered tables, what partitioning logic is being applied, and the current balance between between local storage and object storage (tiered and untiered data size).

SELECT * FROM pgaa.list_tiered_tables();

Query the bdr.analytics_table view to see the low-level mapping between your Postgres schema and the underlying analytical engine. This table tracks the relationship between your local node group and the remote analytics target.

SELECT * FROM bdr.analytics_table;

Use the following query to distinguish between hot and cold partitions:

SELECT
    relname AS partition_name,
    amname AS access_method
FROM pg_class c
JOIN pg_am am ON c.relam = am.oid
WHERE relname LIKE 'my-transactional-table%'
  AND c.relkind = 'r'
ORDER BY relname;

Modifying and disabling tiered tables

You can modify their lifecycle policies or revert them to standard partitioned tables using a combination of PGD and PGAA commands.

Adjusting lifecycle settings

You can update the partitioning and offloading logic for an existing tiered table running the bdr.autopartition() function.

This is particularly useful if you need to shorten or extend the offload threshold. For example, to change analytics_offload_period from 1 month to 3 months, run:

SELECT bdr.replicate_ddl_command($$
  SELECT bdr.autopartition(
    relation := 'public.my-transactional-table',
    partition_increment := '1 month',
    partition_initial_lowerbound := '2020-01-01',
    analytics_offload_period := '3 months'
  )
$$);

See AutoPartition in PGD for details.

Modifying replication status

If you wish to change the current setting for enable_replication, you must manage the replication status of the partitions.

Use the pgaa.enable_analytics_replication() or pgaa.disable_analytics_replication() functions against the parent table to ensure consistency across the hierarchy:

CALL pgaa.enable_analytics_replication('my-transactional-table'::regclass);

Using ALTER TABLE against the parent table only sets the value of enable_replication for future partitions; it does not retroactively update existing child partitions. You must manually run the ALTER TABLE command on every existing partition to ensure consistency across your data.

Disabling tiered tables

To revert to a standard partitioned heap table:

1. If enable_replication was active, stop replication on the parent table:

   → WrapCopy

   CALL pgaa.disable_analytics_replication('my-transactional-table'::regclass);

2. Restore cold partitions. For each cold partition, run:

   → WrapCopy

   pgaa.restore_from_analytics('partition_name');

   Or use ALTER TABLE partition_name SET ACCESS METHOD heap;.

3. Remove the tiered table flag from the parent table:

   → WrapCopy

   ALTER TABLE my-transactional-table SET (pgaa.tiered_table = 'false');

4. Stop AutoPartition (optional). To stop the table from creating new partitions entirely, run:

   → WrapCopy

   bdr.drop_autopartition('my-transactional-table');

5. Verify that the table is not listed as a tiered table anymore with SELECT * FROM pgaa.list_tiered_tables().

6. Verify that all partitions list heap as their access method:

   → WrapCopy

   SELECT
       c.relname AS partition_name,
       a.amname AS access_method
   FROM pg_class c
   JOIN pg_am a ON c.relam = a.oid
   WHERE c.relname LIKE 'my-transactional-table%'
     AND c.relkind = 'r';
